JAS Soft Closing Insert Hinge, 4 Holes, 3D Adjustment

4 Holes
Add to inquiry box
Production information
Description
  • Pitch : 52mm

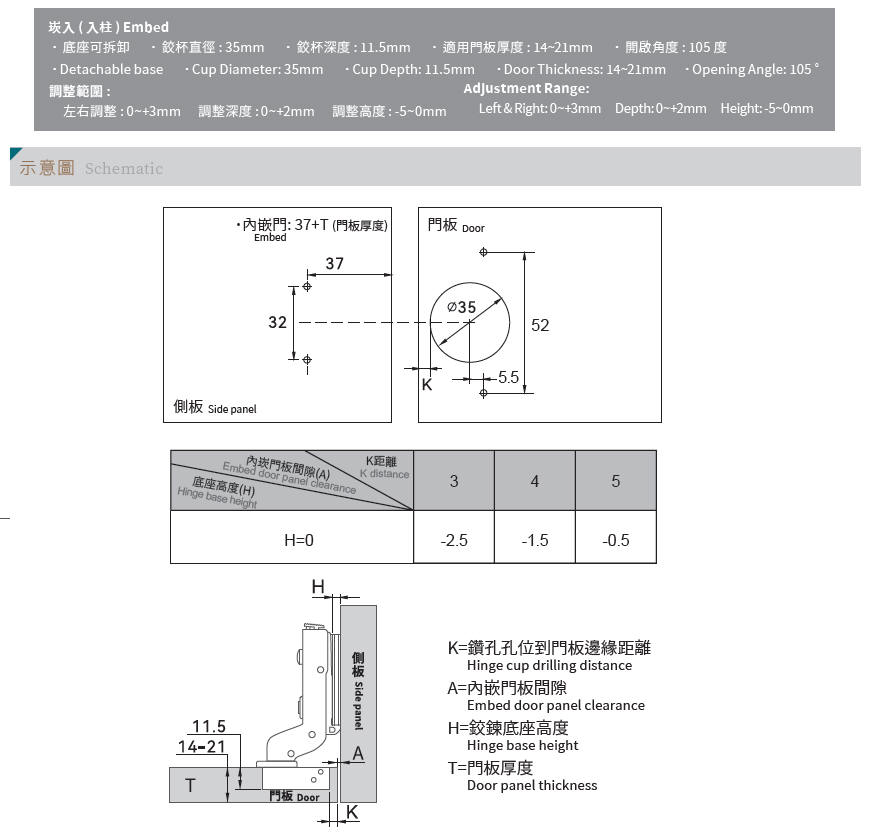

Schematic

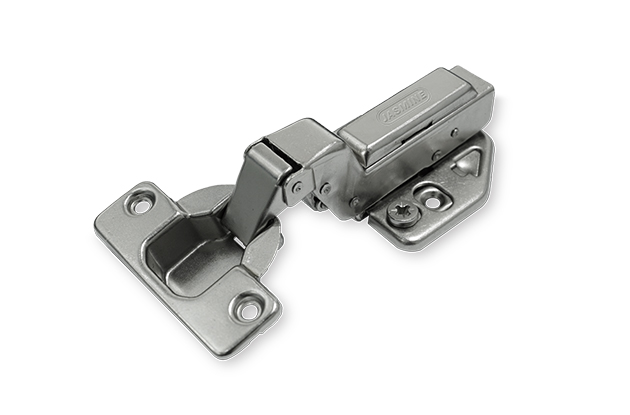

Steel, Nickel Plated  ( Pitch : 52mm )

Scroll left to find more information

Item No. Hole / Plastic Dowel
DO1074J
0108DO1014H2OTL		 W/o plastic hinge dowel
DO1074AJ
0108DO1A14H2OTL		 Hinge cup including Ø10x12mm plastic
hinge dowel, 2pcs

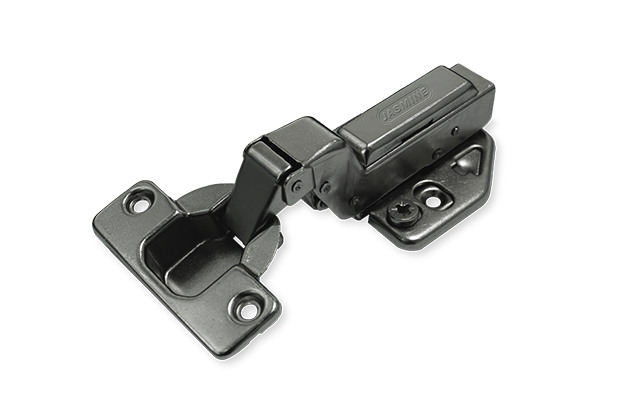

Steel,Nickel Plated -Gun-Colour  ( Pitch : 52mm )

Scroll left to find more information

Item No. Hole / Plastic Dowel
DO2074J
0108DO2014H2OTL		 W/o plastic hinge dowel
DO2074AJ
0108DO2A14H2OTL		 Hinge cup including Ø10x12mm plastic
hinge dowel, 2pcs
